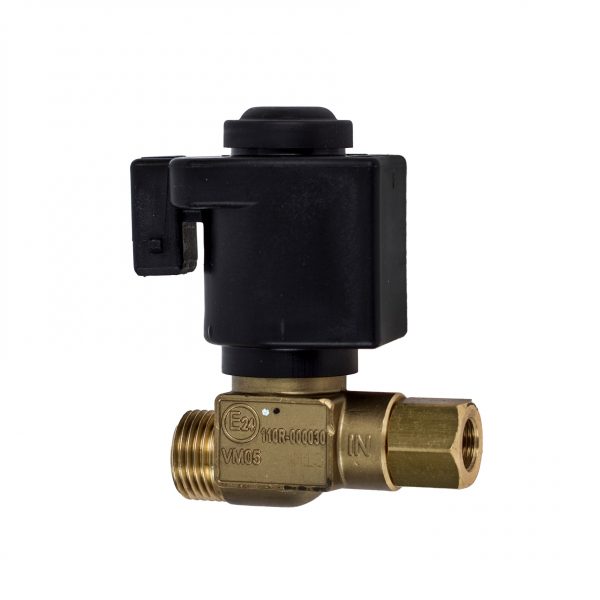

Energia Italy CNG high pressure solenoid valve is homologated in accordance with the European Regulation ECE R110 and R10, approved in accordance with the ENARGAS NAG415 and NAG417 and comply with the ISO15500 standards.
Upon request, Energia Italy VM05 VMAT5901 is available in extra version characterising with higher solenoid voltage and wider inlet connection.
| Material | Hot forged brass |
| Weight | 0,5 kg |
| Working temperature | -40°C +120°C |
| Max. pressure | 26.0 MPa |
| Inlet connection | Ø6.0 mm M12x1 / Ø8.0 mm M14x1 |
| Outlet connection | Ø 5,5 mm – Ø 6,5 mm |
| Coil voltage | 12 V |
| Colenoid voltage | 12 V DC / 24 V DC |
| Power dissipation | 15 W |
Warranty
24 months quarantee apply from the date stated on the product.
