Designed specially for mid-range cars, suitable for a vast variety of vehicles.
Lightweight, shock-resistant, plastic housing
Many extra tuning options
Auto Calibration
Injector heating
Diagnostic
Waterproof
32 pins
Suitable for 2-3-4 Cylinders

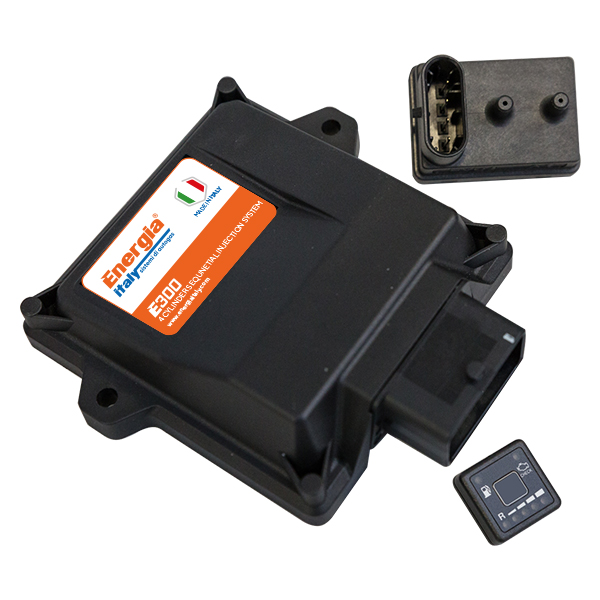

E300 is comes from the experience gained during E400 development in which there have been some changes resulting in a product with an excellent value for money . The connector used in E300 is automotive type 32 poles.
Aria 32 makes a diagnosis of all gas components in real time , viewing any errors on the switching LEDs. The verification of the problems incurred can be deepened by the calibration software at any time.
The connection to the engine signals, offers exceptional qualities of connective security and protection against water infiltration.
TECHNICAL DATA
| Supply Voltage: | 10 – 16 Volts CC |
| Working temperature: | -20 / + 105 °C |
| Power consumption: – stand-by (key Off): | < 20 mA |
| – no load ready to change (key On): | < 160 mA |
| Gas Injectors supported: | 2, 3, 4 |
| Injectors Impedance: | da 2 a 16 ohm |
| Lock-off load on single input: | 2 (Imax = 4A cad.) |
| Inputs for lock-off / Services: | 2 |
| Water temper. sensors supported: | 4,7 – 10 kohm |
| Gas temper. sensors supported: | 4,7 – 10 kohm |
| Pressure sensors supported: | 4+2,5 bar Absolute |
| Level sensors supported: | 0..5V – 1050 & 806 compatibles – 0..90 ohm (others on demand) |
| Lambda sensors managed: | 0-0,8 / 0-5 / 5-0 / 0,8-1,6 / 2,5-3,5 / UEGO |
| Lambda emulation | possible for all managed type |
| Change-over Switch: | Pushbutton, gas level shown, operating led, ready-to-change blinking, diagnostics, Buzzer |
| Interface: | 4 poles AMP on the loom for custom USB or Bluetooth interface |
CERTIFICATIONS
- ECE 67R-01
- ECE 110R-00
- ECE 10R-03
KIT CONTENT
- 1 x ECU Unit with standard plastic box + back cover in aluminum
- 1 x “Intelligent” change-over switch
- 1 x pressure sensor type 4+2,5 Absolute
- 1 x standard loom CA0316
- 1 x fuse (7,5 A) and fuse holder bag
- 1 x shrink tube bag (4 cyl)
- 1 x Wiring diagram
- Packing: 1 box per kit, 120 box in a carton, 2 cartons per pallet (extra cost will be charged if 1 pallet per carton is needed
